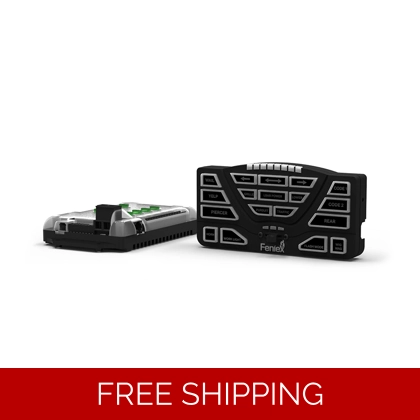

Product Description
- 2 year warranty
- All in one controller
- Input Voltage: 11-16 VDC
- 18, back-lit, push-feel buttons
- 4 position programmable slide switch
- Includes U-shaped aluminum bracket
- Bluetooth App pairing password: 1111
- Integrated traffic advisor with 8 outputs
- Implements rugged, solid state relays
- 8 positive (+) or ground (-) activated inputs
- 17 programmable outputs: 10 Amps (+)
- 1 programmable outputs: 3 Amps (-)
- 2 programmable, 4 output groups: 20 Amps
- 1 programmable 4 output continuous current: 30 Amps
- Integrated 2 channel Wigwag/LED flasher rated at 3 Amps
- Includes wire connectors for easy installation
- USB port provides easy access for programming
- Includes 50 standard function labels per button
- Dimensions of power supply: 6" L x 4" W x 1.5" H
- Dimensions of controller: 6.8" L x 3.5" W x 1.3" H
- Back-lit LEDs can be adjusted for day or night time use
- Compatible with all other lighting and vehicle equipment
- Programmed using our Feniex designed Windows application
- Ability to program buttons as: On/Off, Momentary, Timer
- Bluetooth add on allows for phone or tablet wireless control
- Color coded back lit LEDs (Red indicator for on/Green for off)
- Includes 15 ft of RJ-45 cable to link controller to power supply
| Siren Output: | |
| Bluetooth Activation : | |
